95 000 Series
The 95000 Series is an insulated sliding system for elegant windows and doors, combining the advantages of aluminum with the warmth of natural wood. The advantages of this system are Excellent aesthetics and combination with interiors surrounded by wood. High energy savings due to the high energy efficiency of the system. Increased level of security. High level of sound insulation. Ease of use and high functionality. High quality with certified framing performance. Increased static loads and functionality in case of severe weather conditions.

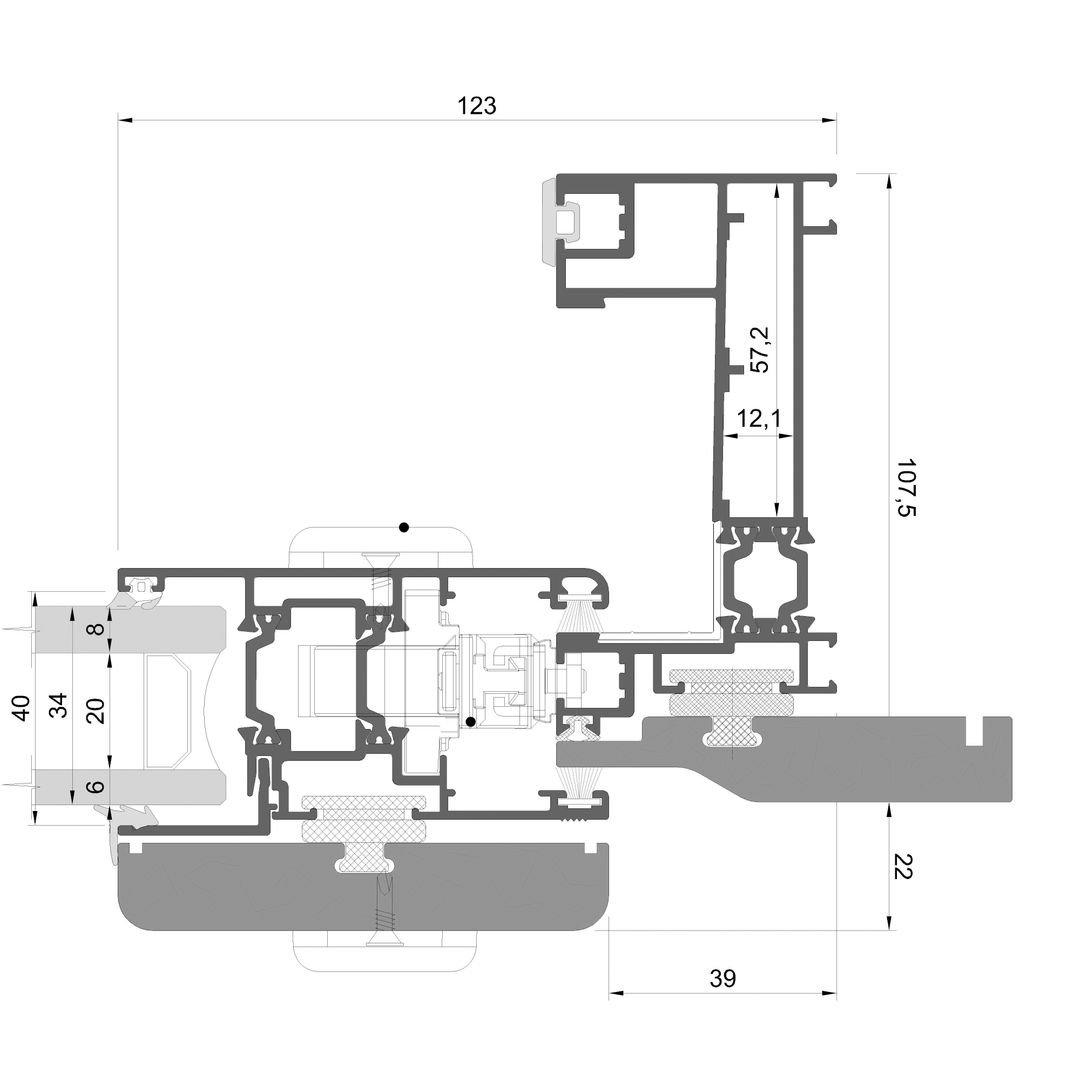

Technical data
| Exterior visible width | 123 mm [4.8”] |
| Frame Depth | 108 mm [4.3”] |
| Sash Depth | 62 mm [2.4”] |
| Glass Thickness | ≤ 34 mm [≤ 1.3”] |
| Thermal Insulation | Polyamide 22 mm [0.9”] |
| Sash mechanism weight limit | ≤ 150 kg [≤ 330.7 lbs] |
| Uf | 1.79 W/m2K [0.315 BTU/h ft2°F] |
